Products:ASTM A182 F91 Weld Neck Ring Type Joint WN RTJ Alloy Steel Flange
Standard: ASTM A182 / ASME B16.5
Steel Grade: F91
Type of Flange: Weld Neck (WN)
Type of face: Ring Type Joint (RTJ)
Material: Alloy Steel

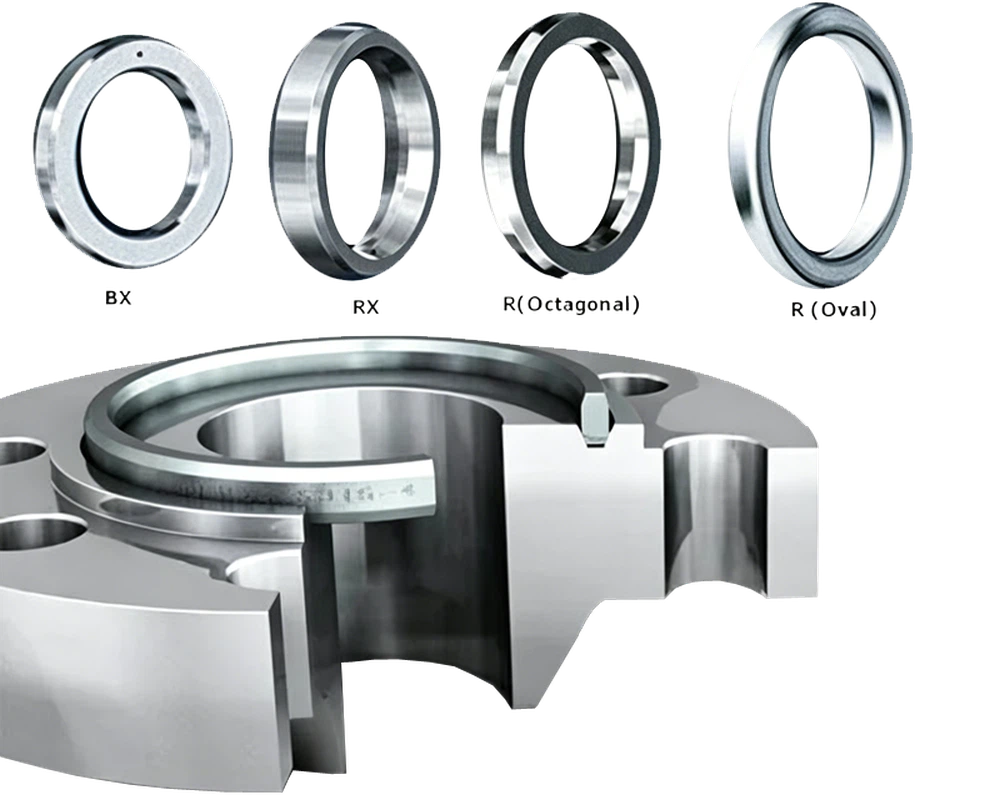

Matching gasket type: BX,RX,R(Octagonal), R(Oval)
The ASTM A182 F91 Weld Neck Ring Type Joint WN RTJ Alloy Steel Flange is a core connecting component for high-pressure and high-temperature working conditions, consisting of a long neck butt welding structure and a metal ring sealing surface. It is characterized by high strength, zero leakage, and resistance to extreme working conditions.
WN (Welding Neck): A long neck conical structure with an equal diameter to the pipeline at the end, fully penetrated butt welding, uniform stress transmission, and reduced risk of weld cracking, suitable for high pressure/high temperature/vibration scenarios.
RTJ (Ring Connection Surface): The sealing surface is processed with precision annular grooves, matched with metal ring gaskets (R/RX/BX type), forming a metal to metal seal. The sealing performance under high pressure far exceeds that of RF/FF surfaces.
Standards: ASME B16.5 (NPS1/2-24 ", Class 150-2500), ASME B16.47 (large diameter 26-60"), API 6A (oil and gas high pressure).
Diameter: NPS1/2 "(15mm) - NPS24" (600mm), large diameter up to 48 ".
Pressure rating: Class150, 300, 600, 900, 1500, 2500 (up to 42MPa).
Temperature range: -29 ℃ to 650 ℃ (depending on the material).
Sealing gasket: R-type (elliptical/octagonal, universal), RX type (high pressure), BX type (ultra-high pressure); Material: Soft iron, 304/316 Inconel, Monel and others.
ASTM A182 F91 Weld Neck Ring Type Joint WN RTJ Alloy Steel Flange core advantage
1:Ultimate sealing: Metal to metal sealing, zero leakage under high pressure/high temperature/thermal cycling, suitable for flammable, explosive/highly toxic media.
2:Strong structure: Long neck butt welding, stress dispersion, fatigue and vibration resistance, long service life.
3:Wide adaptability to working conditions: covering Class 150-2500, -29 ℃ -650 ℃, suitable for harsh scenarios such as oil and gas, chemical, and power.
4:Safe and reliable: Compliant with high voltage standards such as API 6A, suitable for high-risk systems.
Application scenarios
1: Oil and gas: wellhead, high-pressure pipeline, hydrogenation unit (Class 1500-2500, resistant to H ₂ S corrosion).
2: Electricity: Thermal power main steam pipeline (540 ℃, Class900–1500).
3: Chemical industry: High temperature and high pressure reactors, heat exchangers (made of corrosion-resistant duplex steel).
4: Coal chemical industry/new energy: high-pressure gasification, hydrogen energy transportation (zero leakage requirement).
