The Best Elbow Pipe Fitting Manufacture!
Tianjin baode steel co.,ltd we mainly produce seamless steel pipes, erw steel pipes,lsaw steel pipe and ssaw steel pipe,stainless steel, alloy steel elbows, tees, reducers, flanges and other pipe fittings.
Why Choose Us
Product Application
Pipe fittings are widely used in pipeline connections in industries such as chemical, petroleum, power, and steam.
Our Certificate
ISO9001,ISO14001,ISO45001,AAA Credit Enterprise.
Production Market
Our company's pipe fittings are exported to more than 40 countries and regions including North America, South America, Southeast Asia, the Middle East, and Africa, and have received unanimous praise from domestic and foreign customers.
Our Service
Product explanation, answering questions, providing solutions, product quotation. Update production progress in a timely manner, provide multiple payment methods, logistics delivery. Shipping schedule updates, pre arrival reminders, customer follow-up tracking services.
-
![ASTM A234 WP22 Butt Weld Elbow]()
ASTM A234 WP22 Butt Weld ElbowASTM A234 WP22 butt weld elbows are 2¼Cr-1Mo chromium-molybdenum alloy steel pipe fittings designed to redirect fluid flow in high-temperature and high-pressure industrial piping systems.read more -
![ASTM A234 WP11 Butt Weld Elbow]()
ASTM A234 WP11 Butt Weld ElbowASTM A234 WP11 butt weld elbows are chromium-molybdenum alloy steel pipe fittings designed to change pipeline direction in elevated-temperature and high-pressure service environments.read more -
![ASTM A403 WP316L Butt Weld Elbow]()
ASTM A403 WP316L Butt Weld ElbowASTM A403 WP316L butt weld elbows are seamless or welded austenitic stainless steel pipe fittings engineered to change the flow direction in industrial piping systems. Designed for permanent welded installation, these elbows provideread more -
![ASTM A403 WP316 Butt Weld Elbow]()
ASTM A403 WP316 Butt Weld ElbowAn ASTM A403 WP316 butt weld elbow is a wrought austenitic stainless steel pipe fitting engineered to change the flow direction of a welded piping system. The inclusion of molybdenum in the WP316 alloy provides enhanced resistance toread more -
![ASTM A403 WP304 Butt Weld Elbow]()
ASTM A403 WP304 Butt Weld ElbowASTM A403 WP304 butt weld elbows are wrought austenitic stainless steel fittings designed to redirect fluid flow in welded industrial piping systems.read more -
![45 Degree Short Radius Butt Weld Elbow]()
45 Degree Short Radius Butt Weld ElbowA 45 Degree Short Radius Butt Weld Elbow is a butt welding pipe fitting designed to change the flow direction of a piping system by 45 degrees.read more -
![ASTM A403 WP316 Short Radius Elbow]()
ASTM A403 WP316 Short Radius ElbowTianjin Baode supplies ASTM A403 WP316 short radius elbows designed for industrial pressure piping and process piping systems. This fitting utilizes WP316 austenitic stainless steel (UNS S31600) and is manufactured in short-radiusread more -
![ASTM A403 WP304 Short Radius Elbow]()
ASTM A403 WP304 Short Radius ElbowASTM A403 WP304 stainless steel short radius elbow for butt-weld piping systems, engineered for space-constrained industrial layouts, supplied with full material traceability and ASME B16.9 compliance.read more -
![ASTM A403 WP304L Short Radius Elbow]()
ASTM A403 WP304L Short Radius ElbowASTM A403 WP304L Short Radius Elbows are wrought austenitic stainless steel butt-welding fittings designed to change piping direction in installations where a compact centerline radius is required. Supplied in ASTM A403 WP304L material,read more -
![ASTM A234 WP91 Short Radius Elbow]()
ASTM A234 WP91 Short Radius ElbowASTM A234 WP91 alloy steel short radius elbows are engineered for high-temperature piping systems where Grade 91 material and controlled dimensional geometry are required.read more -
![ASTM A234 WP22 Short Radius Elbow]()
ASTM A234 WP22 Short Radius ElbowASTM A234 WP22 Short Radius Elbows are 2.25Cr-1Mo alloy steel butt-welding fittings engineered to change pipeline direction in high-temperature and high-pressure service.read more -
![ASTM A234 WP11 Short Radius Elbow]()
ASTM A234 WP11 Short Radius ElbowASTM A234 WP11 Short Radius Elbows are chromium-molybdenum alloy steel butt-welding fittings engineered for high-temperature and high-pressure piping systems. The WP11 grade integrates chromium and molybdenum alloying with the strictread more
Types Of Elbow Pipe Fittings
Malleable Iron Elbow
Malleable iron elbows are tough and can handle a lot of pressure and heat. These elbow fittings are often used in industrial pipe systems, making them perfect for things like water supply lines and gas pipelines. They’re built to last, so they work well even under tough conditions.
Pressed Elbow
Pressed elbows are made by pressing material into shape instead of welding. This makes them light but still strong! You’ll find these fittings in HVAC systems and home plumbing because they help keep fluid flow smooth with their nice, clean inside surfaces.
Stamped Welded Elbow
Stamped welded elbows are great for projects that need strong joints. The stamping process makes sure all the pieces fit together just right. That’s why they’re often used in heavy-duty applications where reliability matters a lot.
Welding Elbow
Welding elbows come in different materials and sizes to fit various uses. Depending on whether you’re using carbon steel or stainless steel, different welding methods might be needed. These elbows create strong joints and help prevent leaks, making them ideal for important piping tasks.
High Pressure Elbow
High-pressure elbows are made to take on extreme conditions found in industries like oil and gas. They usually use tough materials like alloy steels or high-grade stainless steels to stay durable under stress. When picking high-pressure elbows, really think about what your application needs so that you don’t run into problems later on.
Elbow Pipe Fittings Specifications And Dimensions
|
Type |
Outer Diameter (mm) |
Wall Thickness (mm) |
Radius (mm) |
Standard |
|
45 Degree Elbow |
15-2000 |
1-50 |
1.5D-10D |
ANSI/ASME |
|
90 Degree Elbow |
15-2000 |
1-50 |
1.5D-10D |
API |
|
180 Degree Elbow |
15-2000 |
1-50 |
1.5D-10D |
DIN |
The use and surface treatment of pipe fittings
Anti-corrosion coating: Applying a layer of anti-corrosion paint, spraying, or coating with materials such as zinc on the surface of the pipe fittings to prevent corrosion.
Galvanization: Steel pipe fittings are often hot-dip galvanized or electroplated to increase their corrosion resistance.
Sandblasting: Removing oxide layers, oil stains, and other contaminants from the surface of pipe fittings by sandblasting to make it cleaner and more conducive for subsequent coating.
Polishing: Polishing the surface of pipe fittings to improve smoothness and glossiness, enhancing the appearance.
Hardening treatment: Some special pipe fittings may undergo surface hardening treatment to enhance wear resistance.
Acid pickling: During production, pipe fittings are often acid pickled to make the surface smoother, free of oxide layers, and rust spots. Different materials, processes, and operating environments of pipe fittings require different surface treatment methods to ensure their performance and quality.

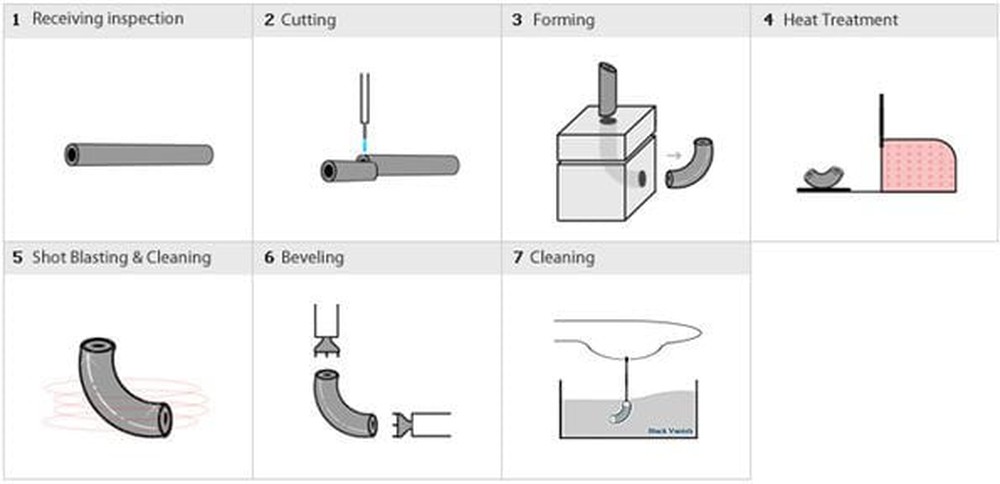

ELBOWS Manufacturing Process
One of the most common Pipe Fittings Manufacturing process for manufacturing Elbows from the pipe is the mandrel method, a kind of hot forming method.
In this method, the pipe is cut into pieces and pushed with the help of a hydraulic ram. An induction heating coil heats the pipe, and it is pushed over a die called a “mandrel,” which allows the pipe to expand and bend simultaneously.
This method can be used to manufacture a wide range of the diameter of elbows.
In the cold extrusion method, a pipe with the same diameter as a finished product is pushed through a die and formed into its desired shape. Usually applied to stainless steel small to medium sizes elbows.
UO method is used to manufacture the medium size of elbow, tee, and reducers. The plate is cut out into a specially designed shape, it is formed first into a U-shape using a die and then into an O-shape or tubular form using another die; that is why this method is known as the UO method.
Once the fittings are tumbler shaped, they are welded from inside and outside of the closing seam. A cut plate is 1st from in U shape and then in O shape.
In a Hot Forming Die Bending method, a Pipe is heated to forming temperature & formed in the die with the specific shape, this process may be repeated as needed to obtain the required shape, size, and wall thickness. Usually applied to thick-wall items that cannot be bent on a mandrel die. You can learn about elbows in this article.
Flaring Test
The flaring test serves to establish the forming behaviors of tubes and pipes which are expanded to a specific degree with respect to O.D. This test is carried out in the confirmation of the international standards.
Flattening Test
A sample of tube or pipe in 4" the length shall be flattened cold between parallel plates in two steps. The weld shall be placed at 90° from the direction of the applied force. The first step is a test for ductility, no cracks or breaks on the inside surfaces are acceptable. During the second step, which is a test for soundness, the flattering shall be continued until the specimen breaks or the opposite walls of the specimen meet.
Tensile Test
The tensile test serves to determine the strength and ductile characteristics of the tube's pipes i.e., yield strength, tensile strength, and elongation.
Hardness Test
Samples from each lot of continuously heat-treated tube pipes are tested to ensure that the hardness is well within specified limits.
Eddy Current Test
This test is carried out to detect any micro-cracks or inhomogeneities in the material, by using the test procedure as described in ASTM E-426.
Reverse Band Test
A Sample of 4ft in length shall be split longitudinally 90 on each side of the weld. The sample shall then be opened and bent around a mandrel with a maximum thickness of four times the wall thickness, with the mandrel parallel to the weld and against the original outside surface of the tube. The weld shall be at the point of the maximum bend. There shall be no evidence of cracks or overlaps resulting from the reduction in thickness of the weld areas by cold working.
Applications of Elbow Fittings
Plumbing Systems: Elbow fittings are widely used in plumbing systems to connect pipes and change the direction of water flow. Whether it’s residential, commercial, or industrial plumbing, elbow fittings ensure efficient water distribution and enable proper pipe routing.
HVAC Systems: Heating, ventilation, and air conditioning (HVAC) systems rely on elbow fittings to facilitate the movement of air and ensure proper airflow distribution. Elbows help navigate corners, bends, and obstacles within the ductwork, optimizing the HVAC system’s performance.
Oil and Gas Pipelines: In the oil and gas industry, elbow fittings play a crucial role in pipeline installations. They enable changes in the pipeline’s direction, accommodating obstacles and maintaining the integrity of the overall system. Elbows ensure efficient fluid flow, reducing pressure drop and minimizing energy losses.
Chemical Processing: Elbow fittings find applications in chemical processing plants, where they facilitate the flow of various liquids, gases, and chemicals. The ability to change flow direction and connect different components is essential for efficient and safe chemical processing operations.
Power Plants: Power generation facilities, such as thermal power plants, rely on elbow fittings for their piping systems. Elbows help route steam, water, and other fluids within the power plant, ensuring optimal performance and efficient energy production.
Food and Beverage Industry: In food processing and beverage production, sanitary piping systems are crucial. Elbow fittings play a vital role in maintaining hygienic conditions by allowing smooth flow transitions, preventing contamination, and facilitating easy cleaning and maintenance.
Marine and Offshore Installations: Elbow fittings are extensively used in marine and offshore installations, including shipbuilding, offshore platforms, and oil rigs. They enable the proper routing of piping systems in confined spaces, withstand harsh marine environments, and ensure reliable fluid flow.
Pharmaceutical and Biotechnology: The pharmaceutical and biotechnology industries have stringent requirements for clean and sterile environments. Elbow fittings, especially those made of stainless steel or other suitable materials, are essential for maintaining aseptic conditions and ensuring smooth fluid transfer in critical processes.
Proper packaging is essential to safeguard steel tubes from defects that may occur during transport and handling.a comprehensive quality control process for steel tubes must include an assessment of the packaging’s suitability, ensuring it is appropriately designed and contains accurate information.
Our Factory
The company currently has 3 elbow pushing machines and various types of molds. Capable of producing 1/2 "-24" seamless and slotted elbows through push production, with 6 sets of tee forming machines capable of producing tees of various wall thicknesses from 1/2 "-24". 10 sets of various types of press machines to meet the production of different types of reducer and pipe caps.
Certifications
FAQ
As one of the leading elbow pipe fitting manufacturers and suppliers in China, we warmly welcome you to wholesale customized elbow pipe fitting made in China here and get pricelist from our factory. For price consultation, contact us.
pipe elbow piece, water supply elbow pipe fitting, plumbing elbow pipe fitting-
