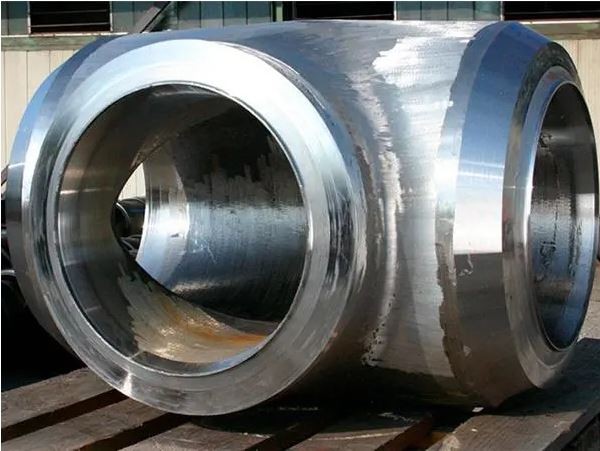

Products:ASTM A234 WP5 Alloy Steel Tee fittings
Standard: ASTM A234/ASME B16.9
Steel Grade: WP5,WP9,WP11,WP12,WP22,WP91 etc
As the core pipe fittings for diversion, convergence, or branch connection in pipeline systems, tees are widely used in industrial manufacturing, construction engineering, energy and chemical engineering, food and medicine, and other fields. We provide three major material series of tees: carbon steel, stainless steel, and alloy steel, tailored to the characteristics, pressure, temperature, and environmental requirements of different working conditions. Through standardized manufacturing and customized services, we meet the full range of application needs from conventional transportation to extreme working conditions, ensuring reliable connections, efficient operation, and long-term stability.
Alloy steel tee: the choice for strengthening under extreme working conditions
Core materials and performance
Using low-alloy high-strength steels such as 15CrMoG, 12Cr1MoVG, and ASTM A234 WP11/WP91, the addition of alloying elements such as chromium, molybdenum, and vanadium significantly improves high-temperature strength, corrosion resistance, and low-temperature impact toughness. For example, 12Cr1MoVG maintains stable mechanical properties at high temperatures of 550 ℃ and has an impact energy of ≥ 34J at low temperatures (-40 ℃), making it suitable for extreme environments.
Applicable working conditions and scenarios
Specially designed for high temperature, high pressure, strong load, and low temperature impact conditions, with a pressure rating of PN10.0MPa or higher and a working temperature range of -40 ℃ to 700 ℃. Its core applications include high temperature and high pressure steam pipelines and boiler systems in the power industry; Petrochemical hydrocracking and delayed coking units; Natural gas long-distance pipelines; Outdoor gas pipelines in cold regions, etc.
Key advantages and precautions
Advantages: Excellent creep resistance and fatigue resistance, able to withstand dynamic loads and frequent temperature fluctuations, high structural strength, and strong safety. Attention: The processing difficulty is higher than that of carbon steel and stainless steel, and special welding processes (such as argon arc welding, preheating and insulation) need to be used. Non destructive testing (UT/RT) must be strictly followed; When purchasing, it is necessary to specify the material grade and implementation standards (such as GB/T12459, ASME B16.9).
