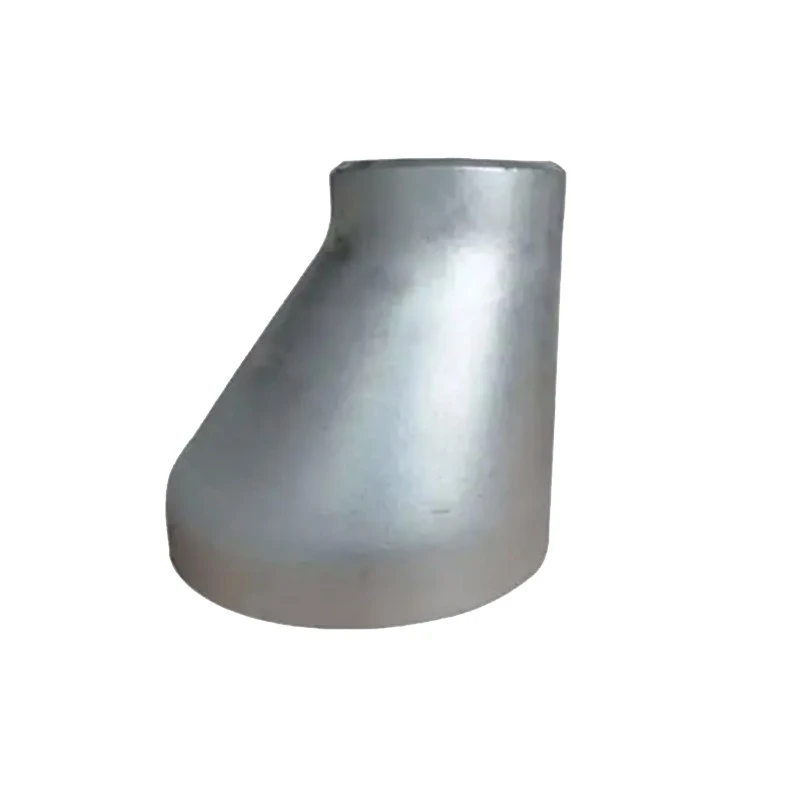

Stainless steel eccentric2 inch to 1 inch pipe reducer refers to a reducer with centers that are not on the same straight line. It is mainly used to connect two pipes of different diameters and is a common pipe connection accessory.
Stainless steel eccentric 2 inch to 1 inch pipe reducer have the advantages of corrosion resistance, high temperature resistance, and high pressure resistance, making them suitable for various complex environments. It can achieve a smooth transition of pipeline diameter, reduce fluid resistance, and improve fluid transport efficiency. Proper use of stainless steel eccentric reducers can not only change the flow path, but also save materials, smooth pipelines, prevent blockages, and improve work efficiency.
Manufacturing standards for eccentric stainless steel heads
The manufacturing of stainless steel eccentric 2 inch to 1 inch pipe reducer needs to be carried out in accordance with relevant national standards, including GB/T 12459, GB/T 13041, SH 3408, ASME B16.9, etc. Among them, ASME B16.9 is the American standard for the production of butt welded pipe fittings, which mainly specifies the detailed dimensions, specifications, and tolerance ranges of various butt welded pipe fittings.
|
Product |
Stainless Steel Reducer 2 inch to 1 inch pipe reducer |
|
Material |
Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH ASTM 860 WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc. |
|
Stainless steel:A403 WP304,WP304L,WP316,WP316L,WP321 etc |
|
|
Alloy steel: A234 WP11,WP22,WP5,WP9,WP91, 10CrMo9-10, 16Mo3,12CrMoV,15CrMo etc. |
|
|
Wall Thickness |
SCH10,SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS |
|
Size |
1/2"-24" seamless, 24"-96" welded |
|
Standard |
GB, ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75,ASTM A234 etc |
|
Place of origin |
Tianjin,China |
|
Package |
Wooden box,wooden pallet or bare |
|
Surface |
Painted,Bare,Galvanized,FBE,3LPE Coated etc |
|
Application |
Chemical , power, construction, petroleum, gas, water, steam, |
|
Advantage |
Customerized dimensions to meet different requirement quality control from raw materials to the final products Abundant stock Rich export experience Good price |
|
Delivery |
By sea, By air and By express |
|
Lead time |
According to the quantities and specifications of each order; |
ASME B16.9 is a standard specification for seamless and welded elbows, tees, and reducers (including eccentric reducers) manufactured in factories. The ASME B16.9 standard is published by the American Society of Mechanical Engineers (ASME) and is primarily used to specify the size, shape, tolerances, and quality requirements for factory fabricated elbows, tees, and reducers used in metal piping systems with diameters ranging from 1/2 inch to 48 inches.
