Key Benefits
|
Technical Specifications
| Item | Specification |
| Standard | ASTM A234 |
| Steel Grade | WPB, WPC, 20# etc. |
| Degree | 45 degree, 90 degree, 180 degree etc. |
| Radius | Long Radius, Short Radius 2D, 3D, 5D, 6D etc. |
| Surface | Black painting, Varnish, Sand blasting, Galvanized, FBE Coating etc. |
| End Type | Bevel ends, plain ends, groove ends etc. |
| Packing | Big size: wooden pallet; small size: wooden box |
| Marking | According to requirement |
| Payment | T/T, L/C at sight etc. |
Product Features

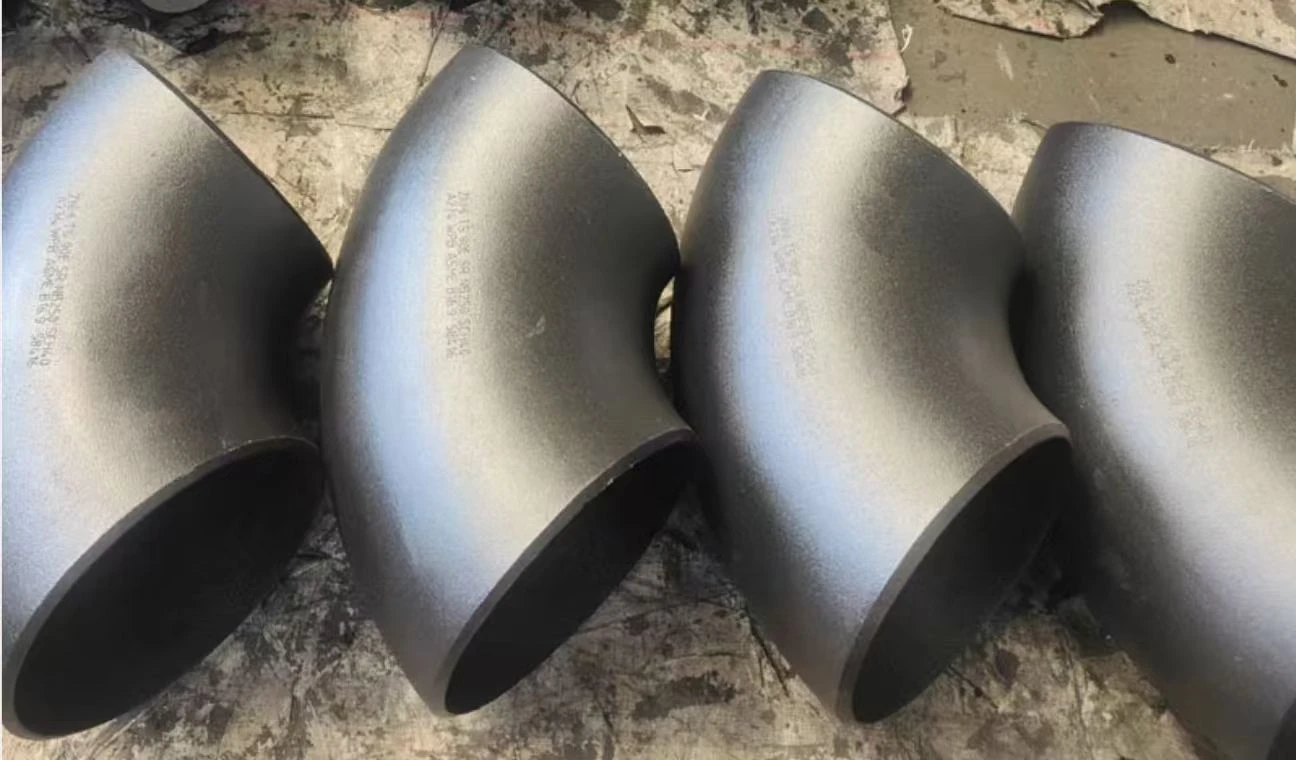

Shot-Blasted & Anti-Corrosion Coated Surface
Feature
Ends are chamfered to a controlled angle and edge thickness in line with welding tolerance requirements, and steel grade is matched to the connecting pipe.
Advantage
Consistent bevel geometry means less on-site grinding and rework before welding.
Benefit
Helps your welding crew keep joint quality consistent and shortens on-site fit-up time on every installation.
Feature
Inner and outer surfaces are shot-blasted to remove oxide scale, then coated with anti-corrosion paint.
Advantage
Removes the mill-scale layer that would otherwise trap moisture and accelerate rust during transport and storage.
Benefit
Fittings arrive ready to install with reduced risk of surface rust claims after a long sea freight cycle.
Beveled Ends for Reliable Welding
Export-Grade Packing & Labeling
Feature
Small sizes are packed in wooden boxes of roughly 1 cubic meter, with weight per box generally capped at 1 ton; large sizes are packed individually on wooden pallets and labeled with size, steel grade, batch number and manufacturer's trademark.
Advantage
Controlled box weight and individual large-item packing reduce the chance of damage or overloading during handling.
Benefit
Your goods clear customs and reach the job site with clear identification and lower transit-damage risk.
Optional Configurations
The following options can be combined to match your project spec - please confirm the exact combination when placing your inquiry:
| Radius | Long Radius / Short Radius (2D / 3D / 5D / 6D etc.) |
| Surface Treatment | Black painting / Varnish / Sand blasting / Galvanized / FBE Coating |
| End Type | Bevel ends / Plain ends / Groove ends |
| Steel Grade | WPB / WPC / 20# etc. |
| Marking | Custom marking available according to requirement |
Application & Industry Solutions
General Industrial Piping
For general industrial pipeline direction changes and diameter transitions, the multiple radius, end-type and surface-treatment options let buyers standardize on one manufacturer across several sub-systems instead of sourcing different fitting types from different suppliers.
Petroleum & Chemical Pipelines
Process pipelines in petroleum and chemical plants need fittings whose grade and standard are traceable for engineering sign-off. This elbow is produced to ASTM A234 in WPB / WPC / 20# grades, matching the specification callouts commonly required in petrochemical piping drawings.
Power & Thermal Pipeline Networks
Power and thermal networks run long welded pipe runs where wall-thickness consistency affects long-term reliability. The hot-pressing forming process used for this elbow keeps wall thickness uniform, supporting consistent performance across large orders of the same size.
Construction & Building Services
Building services piping is typically installed and inspected on tight schedules, and contractors need fittings that are easy to specify against a standard. Ordering by ASTM A234 grade and radius/surface option lets contractors match this fitting to the drawing without a custom quotation cycle for standard sizes.
Shipbuilding Piping Systems
Shipboard piping is welded in confined spaces, which makes edge-and-bevel consistency important for weld quality. The controlled bevel-end processing on this elbow is designed to support consistent fit-up during shipyard welding.
OEM / Custom Marking Service
Beyond standard stock configurations, radius, surface treatment, end type and steel grade can be combined to your project specification, and marking on each fitting can be customized according to your requirement (size, steel grade, batch number, your trademark, etc. - subject to confirmation). Please send your drawing or spec sheet with your inquiry so our team can confirm feasibility and lead time before quoting.
Factory Strength & Certification
|
|
Tianjin Baode Steel Co., Ltd was established in 2006 (formerly Cangzhou Junde Steel Pipe Co., Ltd, renamed in 2019). Its pipe fitting production is carried out by Hongcheng Pipe Industry Co., Ltd, founded in 1992, covering 100,000 square meters with 520 employees, including engineers and around 150 technical staff. Annual pipe fitting output exceeds 20,000 tons, with pipe material throughput of over 50,000 tons. The factory runs 420 sets of key equipment - including elbow pushing machines, presses, large heat treatment furnaces, beveling machines, sawing machines, three-way extruders and a 10,000-ton hydraulic press - and produces in materials including SA106B, 20G, Q345, 12Cr1MoVG, 15CrMoG, 1Cr5Mo, 1Cr9Mo, 10CrMo910, A335 P5/P9/P11/P12/P22/P91/P92, WB36 and various austenitic stainless steels. Products are exported to Southeast Asia, Central Asia, North Africa and South America. |
Elbow hot-pressing production line |
10,000-ton hydraulic press |
In-house impact testing machine |
→ View full production equipment list | → View full test equipment list
Quality Certification
ISO9001 |
ISO14001 |
ISO45001 |
AAA Credit Enterprise |
Export Track Record
Products from this factory are currently exported to Southeast Asia, Central Asia, North Africa and South America, serving pipeline projects across petroleum, chemical, power, metallurgy, urban gas and shipbuilding sectors.
Logistics & After-Sales Support
| Pre-Sales Service | Product explanation, technical Q&A, solution proposal and quotation before you order. |
| In-Sales Service | Timely production progress updates, multiple payment methods, logistics arrangement. |
| After-Sales Service | Shipping schedule updates, pre-arrival reminders, customer follow-up tracking. |
| Packing | Small sizes in wooden boxes (~1 m³, generally ≤1 ton per box); large sizes individually packed on wooden pallets and labeled with size, steel grade, batch number and trademark. |
Frequently Asked Questions
Q1: What standard is this carbon steel 90 degree elbow pipe made to?
-
A: It is manufactured to ASTM A234, in steel grades WPB, WPC, 20# and other equivalents. Please confirm the exact grade required by your project spec when you inquire.
Q2: What radius options are available - Long Radius or Short Radius?
-
A: Both Long Radius and Short Radius (2D, 3D, 5D, 6D etc.) are available. Tell us your required radius ratio and nominal size and we will confirm availability.
Q3: What surface treatments can I choose from?
-
A: Black painting, varnish, sand blasting, galvanized and FBE coating are all available. All fittings are shot-blasted before coating to remove oxide scale from the inner and outer surfaces.
Q4: Does your company hold quality management certification?
-
A: Yes - Tianjin Baode Steel Co., Ltd holds ISO9001 (quality management), ISO14001 (environmental management) and ISO45001 (occupational health and safety) certification, along with AAA Credit Enterprise recognition. Certificate copies are available on request.
Q5: What end types are available for welding?
-
A: Bevel ends, plain ends and groove ends are all available. Ends are chamfered to a controlled angle and edge thickness to support consistent weld quality, and steel grade is matched to your connecting pipe on request.
Q6: How are the fittings packed for export, and can packaging be labeled to my requirement?
-
A: Small sizes are packed in wooden boxes of about 1 cubic meter (generally capped at 1 ton per box); large sizes are individually packed on wooden pallets. Every package is labeled with size, steel grade, batch number and manufacturer's trademark, and marking can be customized according to your requirement.
|
Need a Carbon Steel Black 90 Degree Elbow Pipe Quote for Your Project? Send your radius, surface treatment, end type and quantity - we'll confirm price and lead time. Request a Quote Contact Us |
